Model

4U Industrial computer（ITX110B）

size

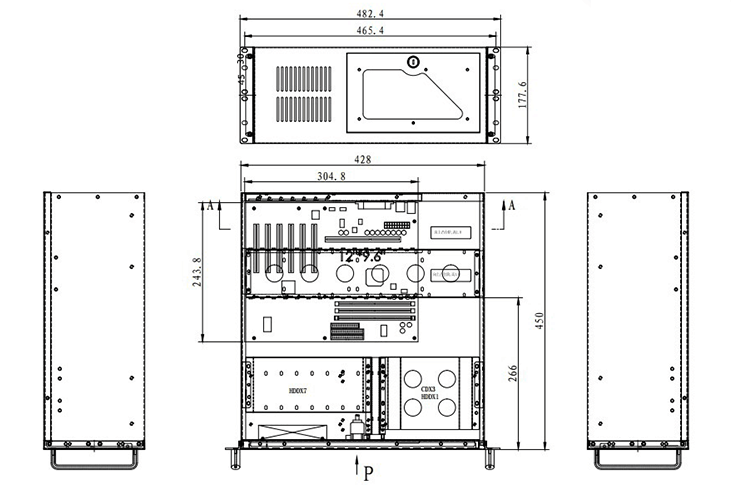

482*450*178mm

material

Advanced galvanized steel sheet

CPU

Support LGA1151?socket Intel 6th and 7th?i3-i5-i7/Pentium/Celeron CPU

Chipset

H110/H170?high speed chipset

Operation system

Windows7 Windows8.1 Windows10 Linux（ if with 7th CPU , only supports Windows10 and Linux）

Ram socket

4*DDR4 RAM Socket，support DDR4 2133/2400Mhz dual chanel

Lan Port

Onboard?2*?Intel I211 Gigabit Lan Port

Standard Fan

1*12025?fan ，or 2*6025?fan for optional

Expansion socket

Case support 7*Whole size PCIE Socket

CD driver

support 3*5.25 driver

Hard disk

8*3.5inch hard driver Hole

Audio

Onboard?HDA ALC662

Storage socket

2*SATA Socket 1*MSATA

Color

Black

Panel Ports

1*DP,1*HDMI,2*VGA 2*LAN,6*USB3.0 2*USB2.0(when H110?chipset，only 4*USB3.0) 1*MIC-OUT/LINE-OUT/LINE IN

Power supply

Desktop Atx Power supply

Net weight

10KG

Gross weight

12.0KG
