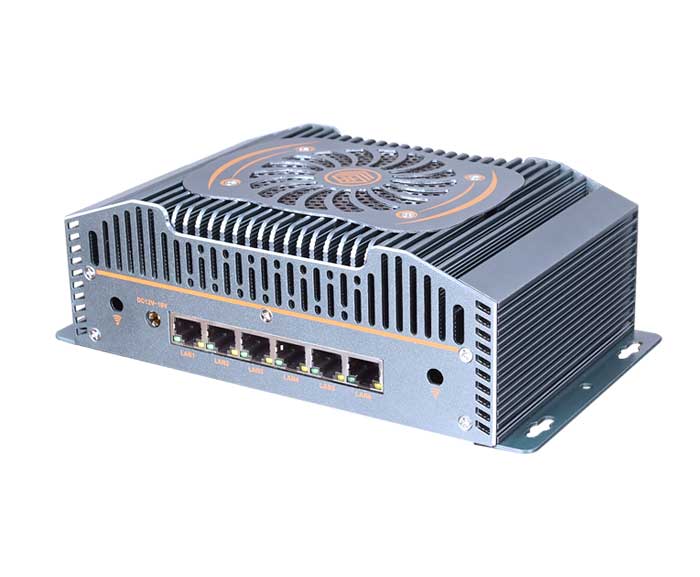

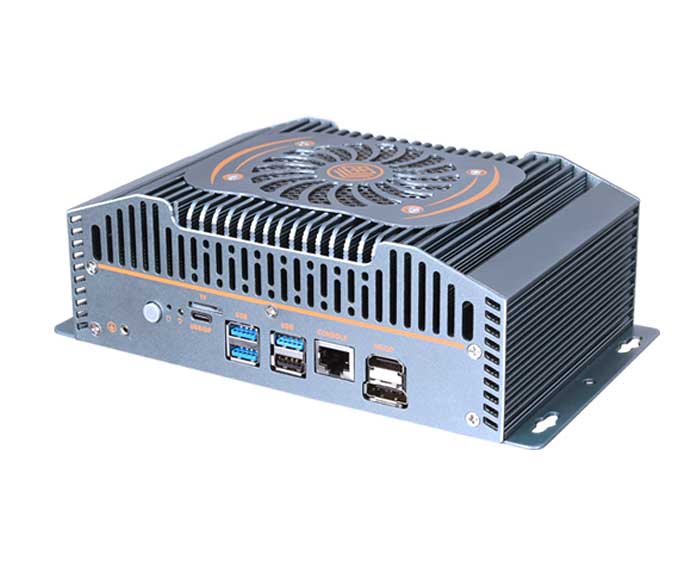

AI EDGE Computing Box Ultra 7 155H 6 Lan Embedded Industrial Mini PC with Fan

Model : N-BOX-S5F

Description :
?Onboard Intel Core Ultra series processor;
?2 x DDR5 SO-DIMM, total maximum 96GB;
?6 x Intel i226-V (4 x i226-V for option);
?TPM2.0, 1 x M-Key, 1 x E-Key, 1 x B-Key;
?1 x HDMI2.0, 1 x DP, Type-C(USB3.0+DP)
?DC 12-19V, 90W; Size: 134x126x41mm.

  • Product details
  • Specification parameter
  • File download

Material

Aluminum profile, iron gray

Processor

Onboard Intel Core 12th / 13th generation -U/-P series processor, TDP15W

Onboard Intel Core Ultra series processor



EFI BIOS

Memory

2 x DDR5 SO-DIMM, total maximum 64 GB

Storage

1 x M.2 M-Key 2280 (PCIe 4.0 x 4)



1 x M.2 M-Key 2280 (next to E-Key, PCIe 4.0 x 4/SATA3.0 protocol optional) Please note when placing an order



1 x 2.5-inch SATA3.0, 2Pin 5V power supply

Display

1 x HDMI2.0, 4K@60Hz



1 x DP, 8K@60Hz



Type-C interface (DP 8K@60Hz + USB3.2)

Board Edge I/O interface

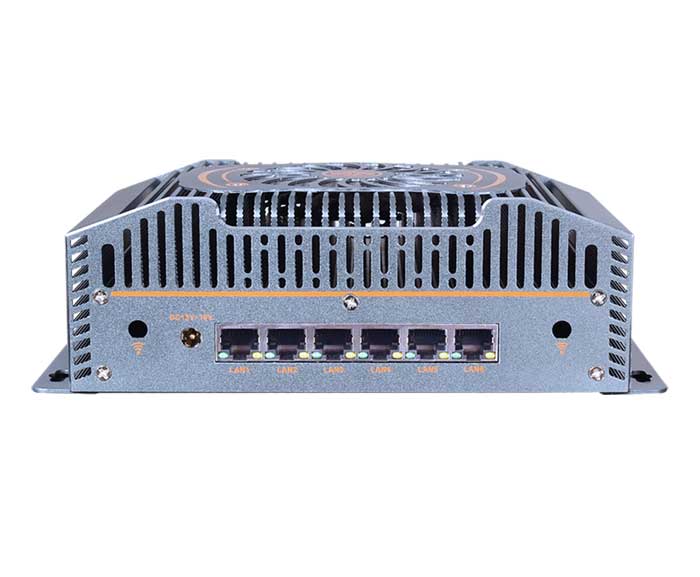

DC JACK, 6 x LAN, 1 x HDMI, 1 x DP

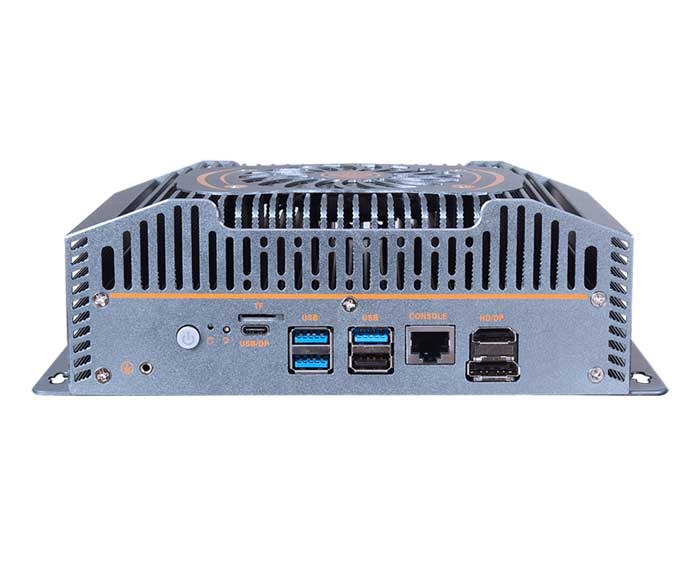

4 x USB, TF card, Type-C (USB+DP)



Switch button, reset button, 1 x CONSOLE

Extended interface/function

External TPM2.0 optional



1 x E-Key (PCIe+USB2.0, WIFI/BT)

Power Supply

DC 12-19V, 90W

Working Environment

Working temperature: -20 ~ +60; Working humidity: 5% ~ 90%



Storage temperature: -40 ~ +85; Storage humidity: 5% ~ 90%

Operating System

Win10, Win11, Linux

Size

216 x 123.6 x 67.5mm

Weight

Host net weight is about 1600g, the gross weight is about 2500g.

+
