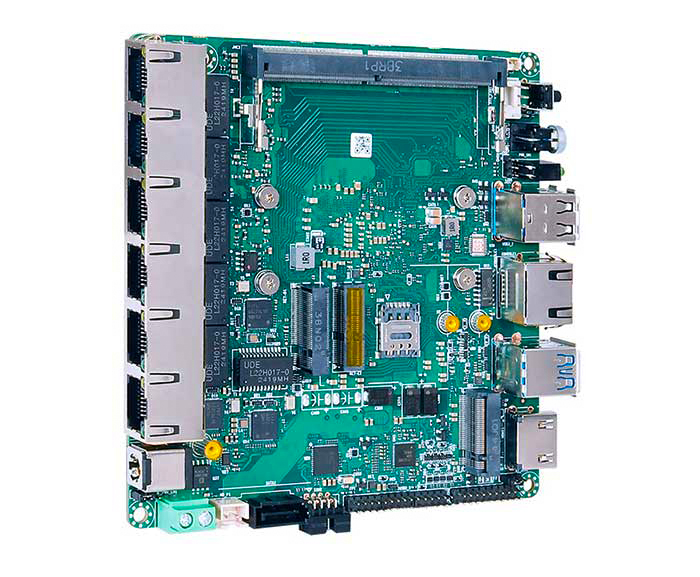

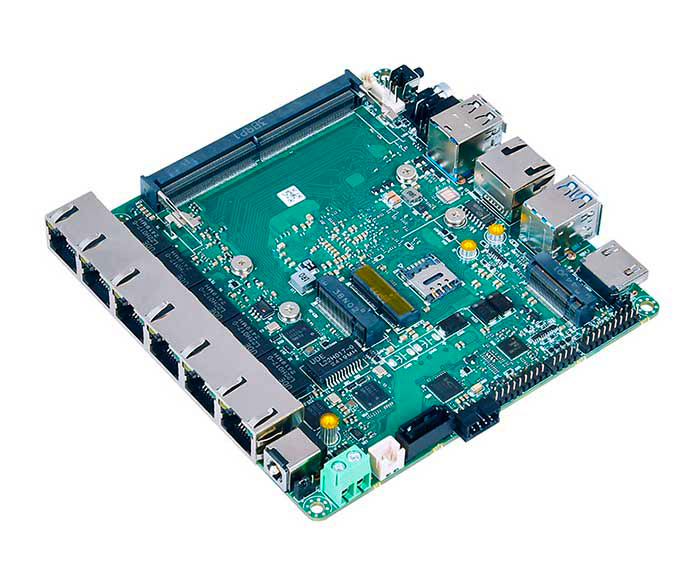

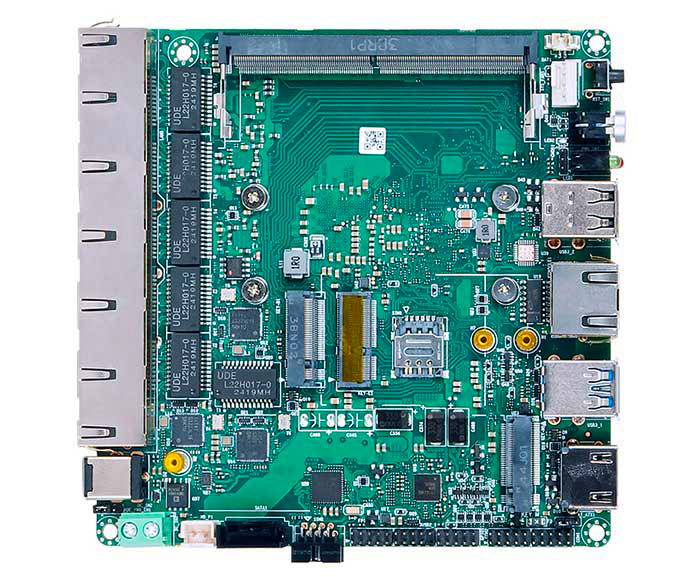

12th Gen N100 N300 N305 Nano ITX Motherboard 6 Lan

Model : AD30NA6L

Description :
?Onboard Intel Alder Lake-N series processor;
?1 x DDR5 SO-DIMM, total maximum 16GB;
?6 x Intel i226-V (4 x Intel i226-V optional);
?1 x M.2 2280 SSD, E-Key, B-Key;
?1 x HDMI2.0, TPM2.0;
?DC 12-19V; Size: 120 x 120mm.

  • Product details
  • Specification parameter
  • File download

Processor system

Onboard Intel Alder Lake-N series processor, TDP 15W



EFI BIOS

Memory

1 x DDR5 SO-DIMM, total maximum 16GB

Storage

1 x M.2 M-Key 2280 (SATA3.0 protocol)



1 x SATA3.0, 2Pin 5V power supply

Display

1 x HDMI2.0, support 4K@60Hz

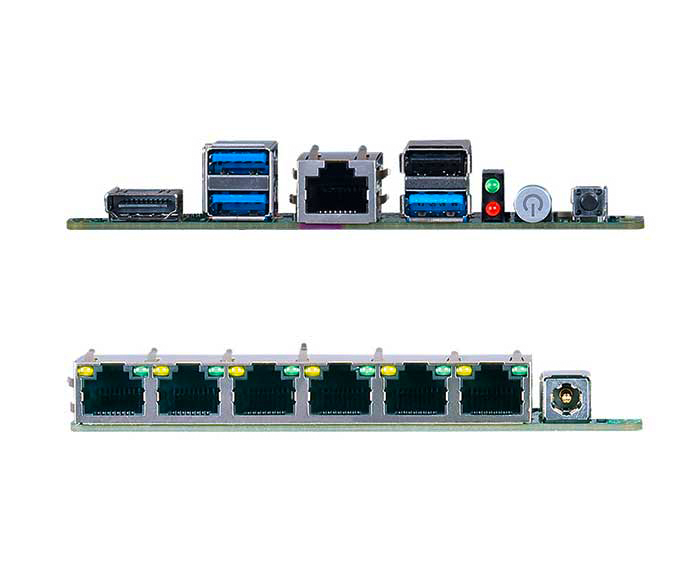

Board edge I/O interface

Power button, reset button, 3 x USB3.0, 1 x USB2.0



DC JACK, 1 x HDMI, 1 x Console



6 x Intel i226-V (4 x Intel i226-V optional; POE optional for LAN1/2/3/4, POE has a pop-up switch)

Expansion interface/function

External TPM2.0 optional, not available by default. The default is CPU built-in TPM2.0



1 x M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module; no PCIe protocol when using 4LAN)



1 x M.2 B -Key (USB3.0+USB2.0 protocol, 4G/5G module)



2 x RS232 pin headers, pitch 2.0mm; 8-bit GPIO, 2x5Pin, pitch 2.0mm



1 x USB2.0 pin header, 2x5Pin, pitch 2.0mm; F _Panel



1 x 4Pin PWM CPU FAN, 1 x 4Pin PWM SYS FAN

Power supply

DC 12-19V, 60W or above

Work environment

Working temperature: -20 ~ +60; working humidity: 5% ~ 90%



Storage temperature: -40 ~ +85; Storage humidity: 5% ~ 90%

Operating system

Windows 10, Windows 11, Linux

Size

120 x 120 mm

Net weight

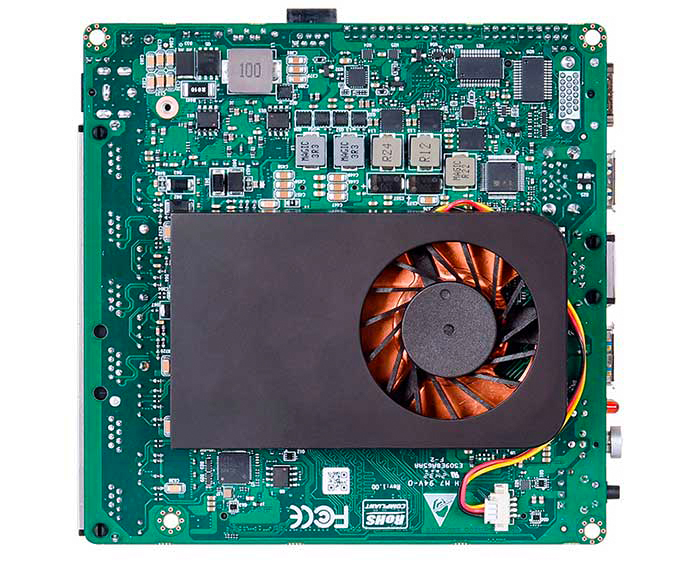

Without radiator, about 130g; with radiator, about 250g

+
