Model

OPS808U

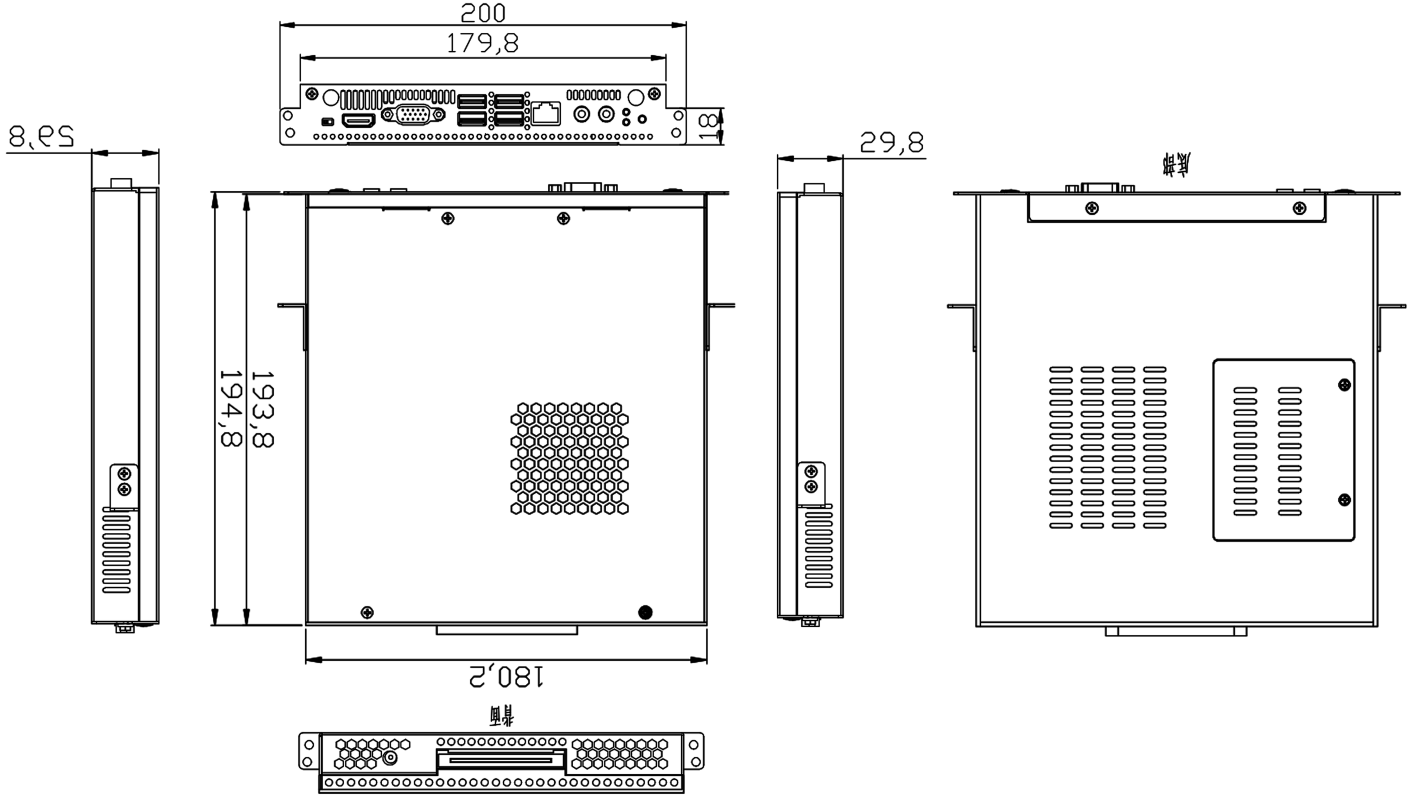

size

200*195*30mm

Processor

Integrated Intel 4th generation mobile Haswell-U single-chip CPU

Chipset

Intel single chip

Memory

Onboard 2GB/4GB DDR3 memory, Expandable to 12 G

expansion slot

1 DDR3 SODIMM 204 Socket

Network Card

Onboard 1 Gigabit NIC

audio

Onboard HDA ALC662

1*MINISATA supports SSD;?1*SATA3.0

black

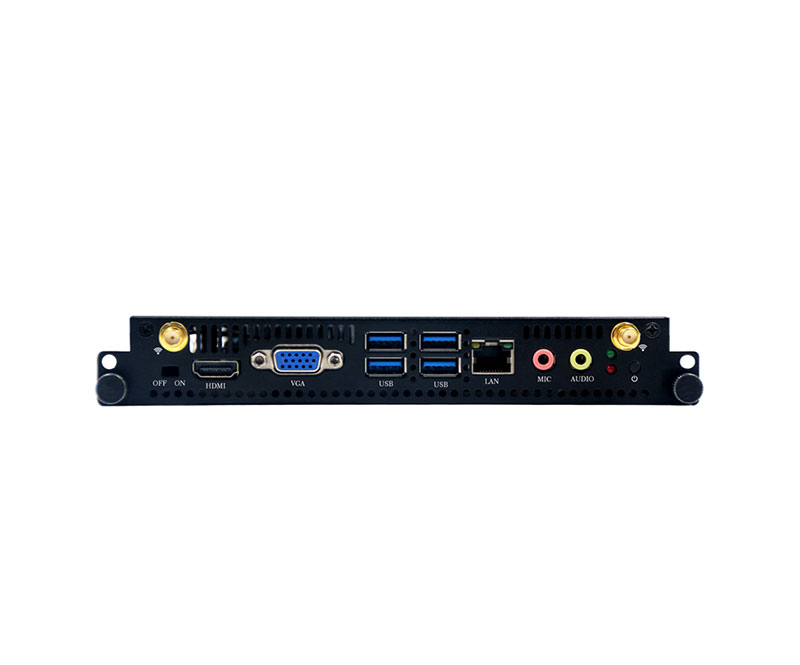

Panel Interface

1*LAN ?1*HDMI ?1*VGA ?1*DC ? ;1*MIC -IN ?1*LINE-OUT??4*USB3.0 ??2*WIFI Antenna Interface

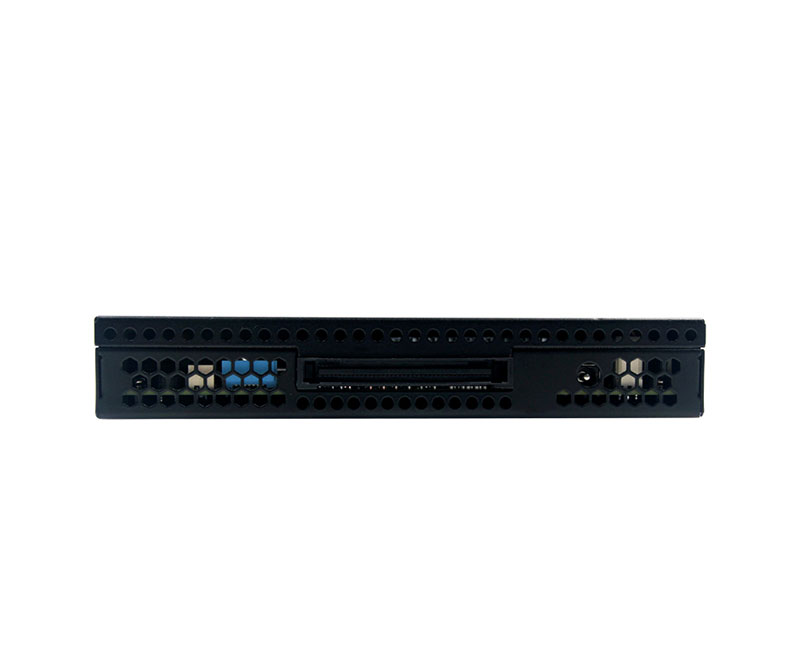

OPS Direct Card Interface

1*LINE-OUT ?1*HDMI ???1*DC ??3*USB ??1 switch button

Standard

1*12V 60W power adapter 1*OPS riser card (optional) 1*WIFI antenna

Can be used with motherboard model

Description

CPU optional

?

???????OPS80B

Intel? CoreTM 4th generation Broadwell-U Soc i3/i5/i7 processor

Hdmi+vga double display

4*USB3.0

I3-4010U

I5-4200U

I7-4500U

1*Host

1*Drive CD

1* User's Guide

product name

Specifications

WIFI module

Long Card/Short Card< /span>

SSD

8G/16G/32G/64G/128G

Notebook Hard Drive

320G/500G

Power

12V 5A/12V 7A< /span>
