Case

Module

N-BOX-T2

color

Black

size

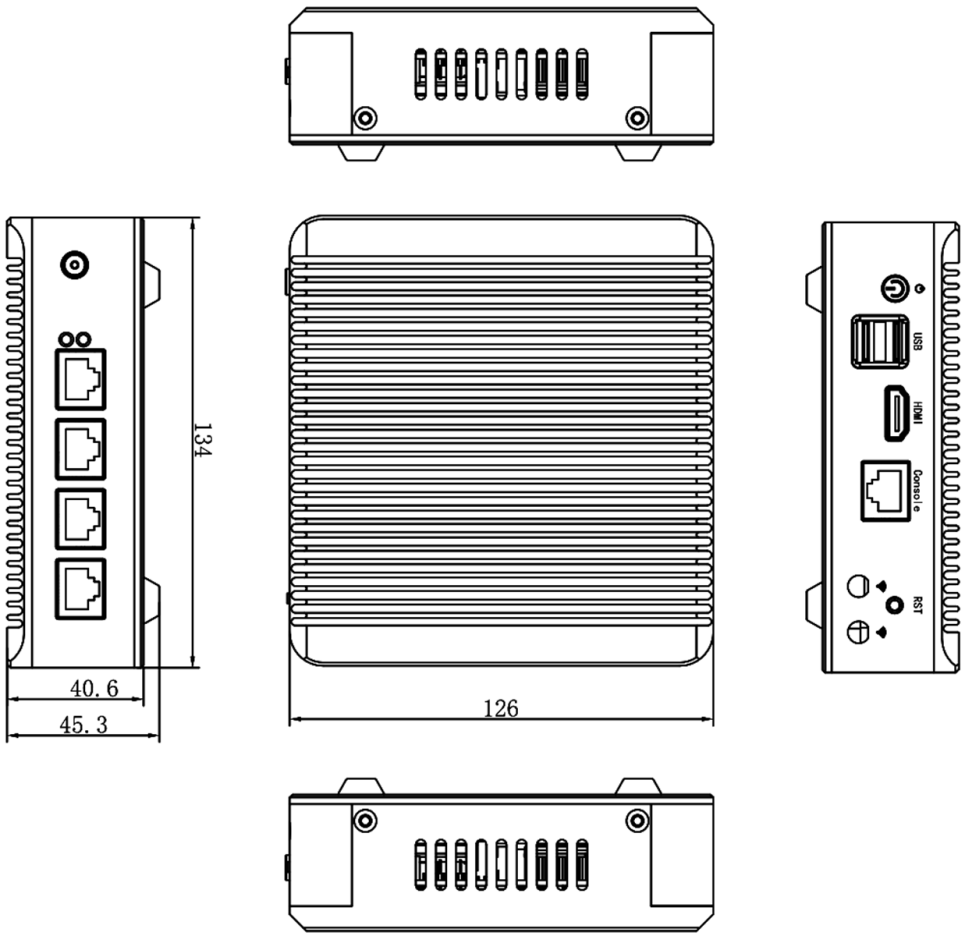

134*126*45.3 mm

material

6063

?

?

Motherboard

Chipset

Baytrail-I/D/M serial processor single chipset

CPU

Support Baytrail-I/D/M serial Processor?(E3845 J1900 J1800)

Memory

Single channel DDR3L 1.35V?1066/1333/1600MHz，max support 8G

Graphic card

Intel HD Graphics

Expansion slot

1*MINI-PCIE?slot，can be add wifi、3G/4G Module (Support PCIE and USB signal equipment

1*MINI-SATA?slot ，can add SSD

1*onbaord EMMC 32/64/128G(optional）

Storage

HDD

2.5inch hard disk

SSD

Solid State Drives

EMMC

32/64/128G（Optional）

Function

display output

HDMI

Internet Output

4*Intel I211?lan Port

USB

1*USB2.0、1*USB3.0

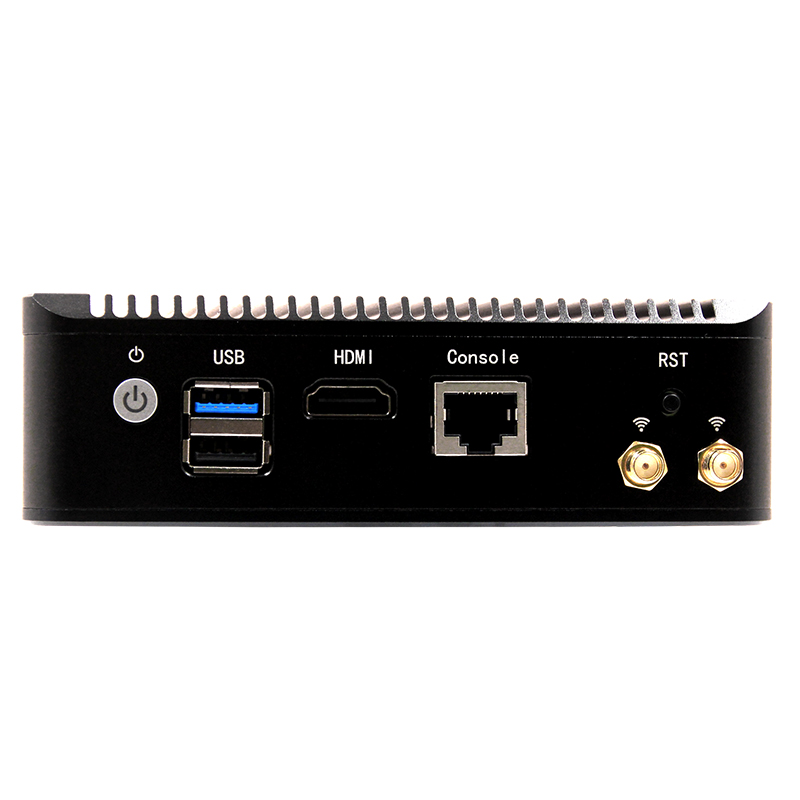

Front?I/O interface

1*Power switch (with indicator light), 1* reset button, 1*HDMI, 1*RJ45 interface RS485 or RS232, 2*USB

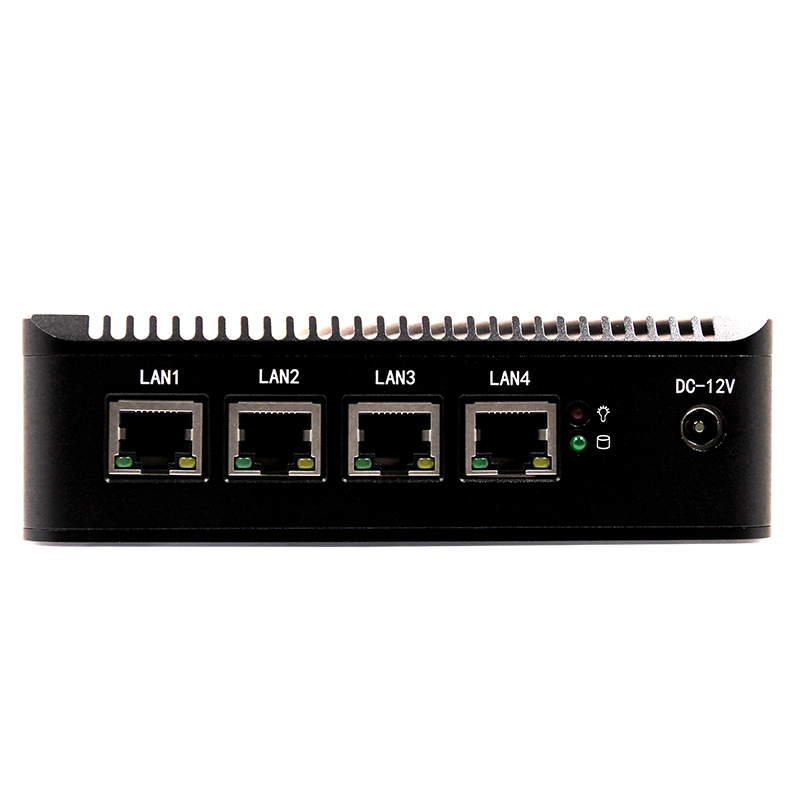

Rear I/O interface

4*Intel I211High Performance Gigabit LAN, 1* Power Indicator, 1* HDD Indicator, 1*DC Power Interface

Working temperature

-10~60℃

Operate system

Windows7、Windows 8、Windows8.1 Windows10、linux

Power

DC12V?Power supply

Module

description

CPU

?

WT19NE4L-J1900

Onboard Intel celeron Baytrail J1900

Quad core 2.0Ghz up to2.4Ghz

DDR3 SODIMM 204 SocketMemory slot supports up to 8G

Integrated 32G/64/128G EMMC chip (optional）

J1900,E3845(quad core）

WT19NE4L-J1800

Onboard celeron intel Baytrail J1800

Dual core 1.6Ghz up to2.0Ghz

Memory slot supports up to 8G

Integrated 32G/64/128G EMMC chip (optional

J1800（dual core）
