Case

Name

Q-BOX-7

Colour

Blue

Size

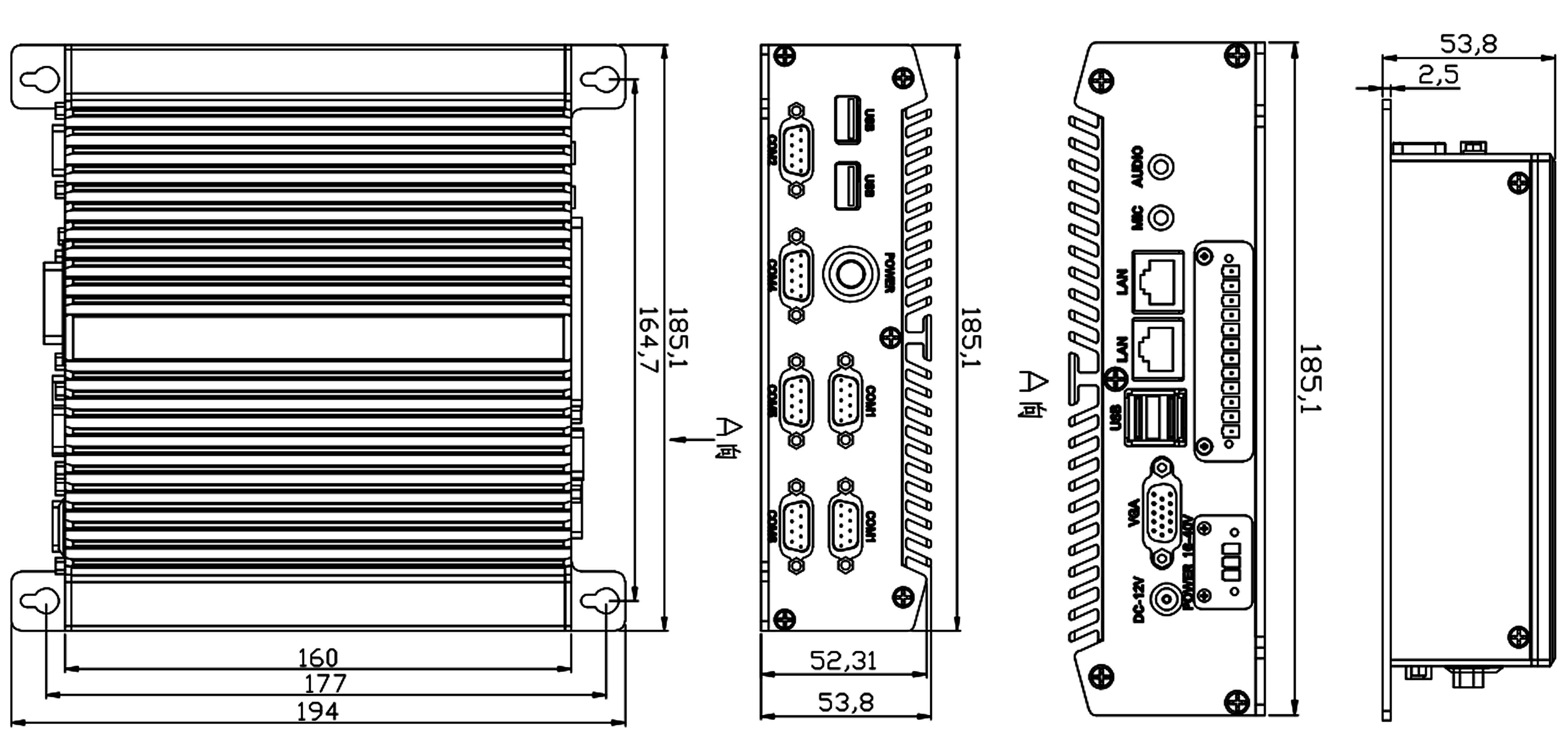

185.2*194*63.5

Material

6063

?

?

Motherboard

Chipset

NM/10

CPU

Onboard Intel Atom D2550 processor

Memory

Onboard DDRⅢ 2GB/4GB?memory

Graphics

Integrated Intel?GMA3600 Graphics

Audio

Integrated Realtek?ALC662?HD

Expansion Socket

1*MINI-PCIE?socket，can add wifi、3G?module

1*MINI-SATA?socket，can add SSD

Storage

HDD

2.5inch HDD

SSD

SSD

?

?

?

?

Function

Display Outputs

VGA、HDMI

Network Outputs

2*Realtek 81111 EL(1000M LAN)

COM

5*RS232、1*RS422/485

USB

4*USB2.0

Front I/O?ports

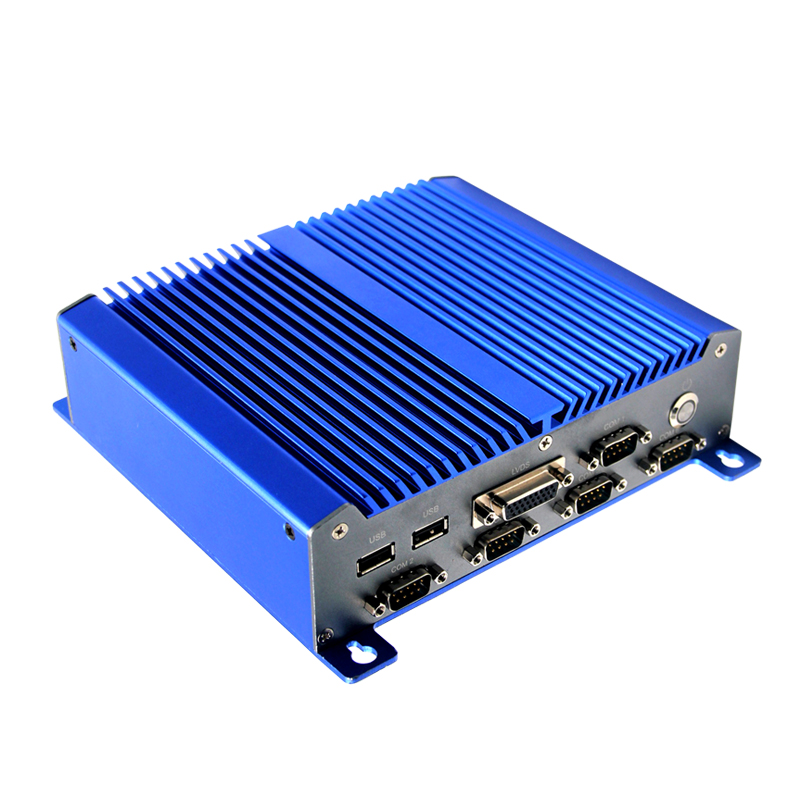

1*Power Switch、5*RS232、1*RS422/485、2*USB2.0

Rear I/O?ports

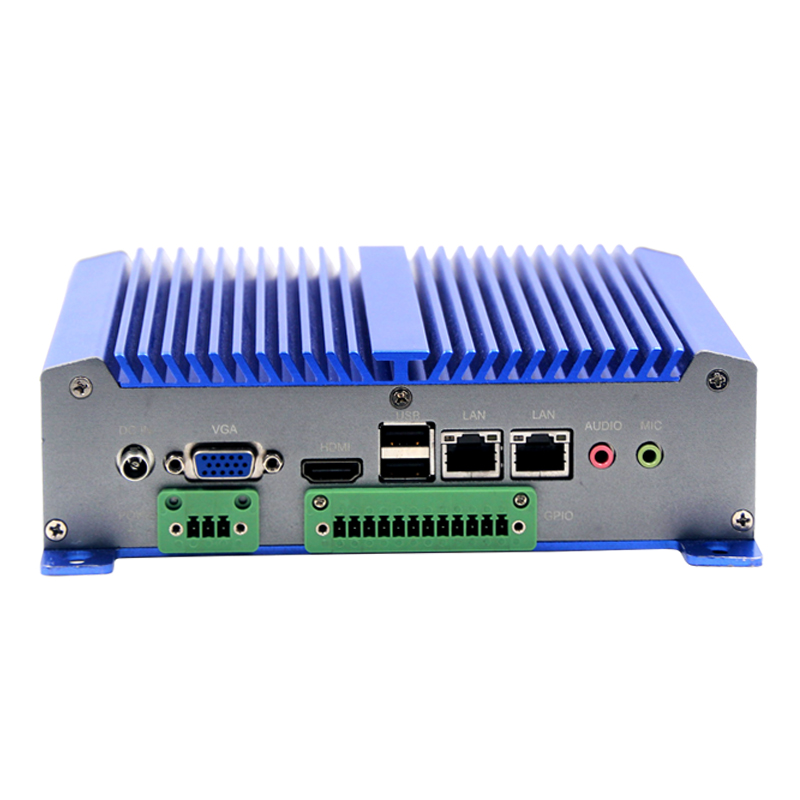

2*USB、2*LAN、1*MIC、1*AUDIO、1*VGA、1*HDMI、1*DC12V?power interface、1*16-40Vwide voltage power supply、1*GPIO

Working temperature

-10~60℃

Operating System

WindowsXP，Windows7、linux

Power Supply

DC12V?and 16-40V?wide voltage power supply（optional)

Model

Description

CPU(Optional)

?

SW2825

Integrated NM10?chipset

Integrated Intel Atom D2550?processor,dual core 1.86G

Onboard 2G?or 4G?memory，6*COM ports，8*USB

N2800（TDP）6.5W
